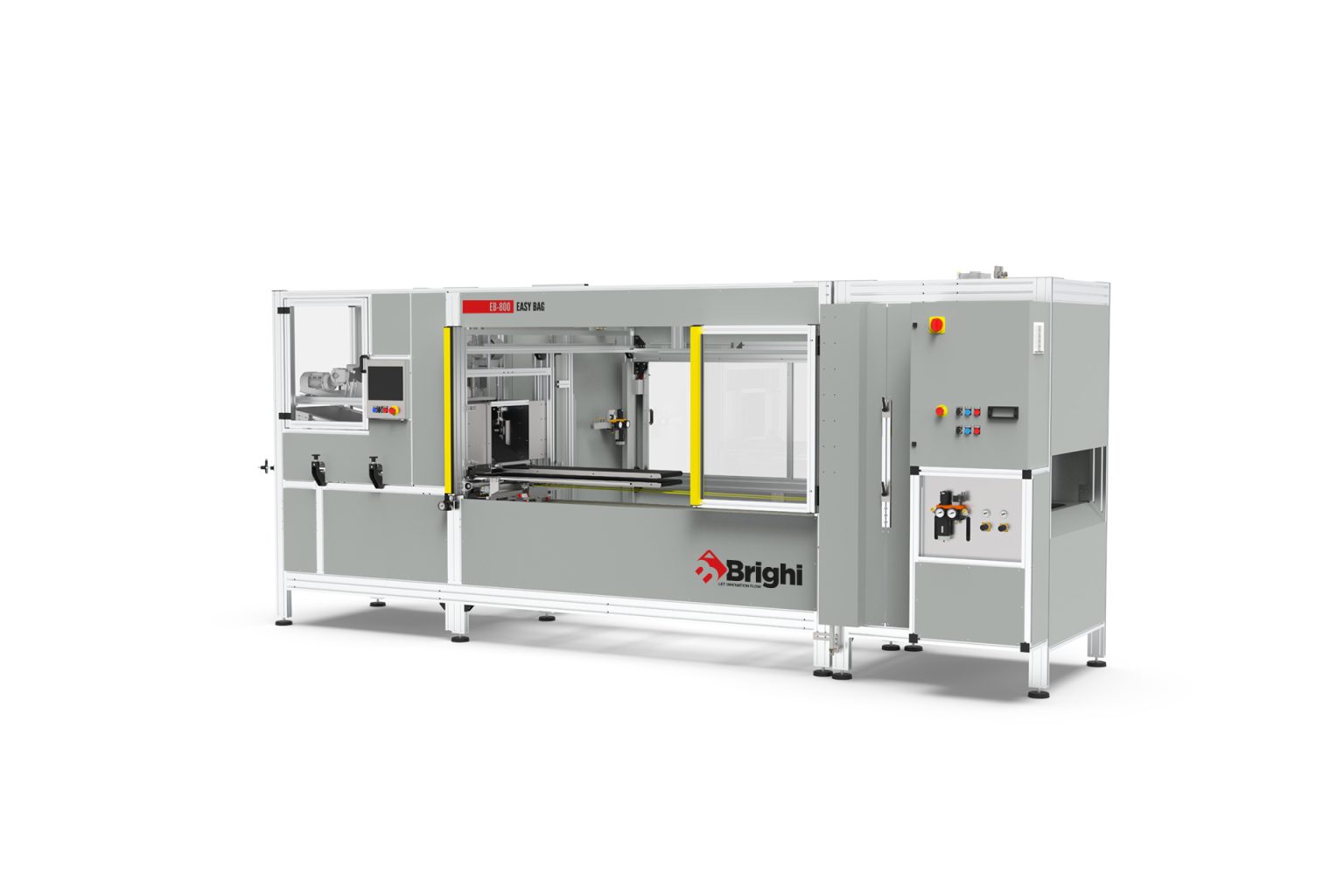

SEMI-AUTOMATIC PILLOW FLAT PACKAGING MACHINE

This is a semi-automatic pillow flat packaging machine to bag cushions and pillows. It can process cushions fed manually by the operator or coming directly from the upstream machines.

The operator inserts the bag on the bagging machine belts. The machine can have different configurations and options according to the type of bag used: it can work with individual pre-packaged bags and bags with zip.

Once the bag has been positioned, the forks open to tension it and the pillow is inserted.

The tensioning system moves the cushion towards the compression and sealing module where the packaged cushion or pillow is compressed (if necessary) and the bag is heat-sealed (no welding in the case of vinyl bags with zip). Products are then ejected for the subsequent processing steps.

Machine parameters are easily set and managed on the touchscreen equipped with intuitive software and the parameters of each individual cushion are saved in recipes to always be available.

There is also an automatic version, EB-500

WHAT CAN BE BAGGED

Pillows, cushions, folded quilts, clothing, stacked towels, stacked dog beds, etc.

WHICH BAGS CAN BE USED

Individual bags, with handle, from tubular, with flap, bags with zip.

MAIN FEATURES OF SEMI-AUTOMATIC PILLOW FLAT PACKAGING MACHINE

Only one operator needed in the bagging process.

• Excellent heat sealing system: double sealing and tearing system for excess plastic, suction and recycling system of plastic scraps.
• Simplified management: touchscreen control panel for the automatic management of all parameters and mechanical adjustments, with insertion and management of recipes with the characteristics of the product/material.
• Flexibility: wide range of materials, bags processed without the need for mechanical adjustments.
• Multiple pillows in one bag: possibility of double or multiple stacking within the same bag.
• Any filling materials: no restrictions on the type of filling of the cushions.
• Leaflet insertion device with a printer suitable for different materials and formats.
• Upgrade to XL version to handle an extended range of products (up to 140cm / 55in in length).
